Optical Imaging and Projection Range

Wide and constant beam angle imaging projection lens

- IMM30S-F55

IMM30S-F55 is an imaging projection lens with wide and constant beam angle. It contains several aspherical lenses, coated with multi-layer anti-reflective film, and assembled in a matte black metal shell. The beam angle of lens is 55° and has the characteristics of ultra-high resolution and no distortion.

The lens is used with LED light source, and a converging lens is provided to gather light. Light spot projected by IMM30S-F55 is clear and sharp, the light intensity distribution is highly uniform and the light path is short.

Applied to: Small and medium-sized LED high definition gobo projector, profile spotlight.

Model. No

IMM30S-F55 / IMM30S-F55G18


LES ≤ Ø10mm,

Small LES helps get higher imaging quality, LES ≤ Ø5.5mm is the recommended value while it is used in gobo projector

Condensing Lens Set

IMMDX25X244X2, Φ25, Φ25, Φ44 and Φ44


≤ Ø30 mm

Beam Angle

Constant 55° @   Ø30mm iris

Light Path Length

< 100 mm

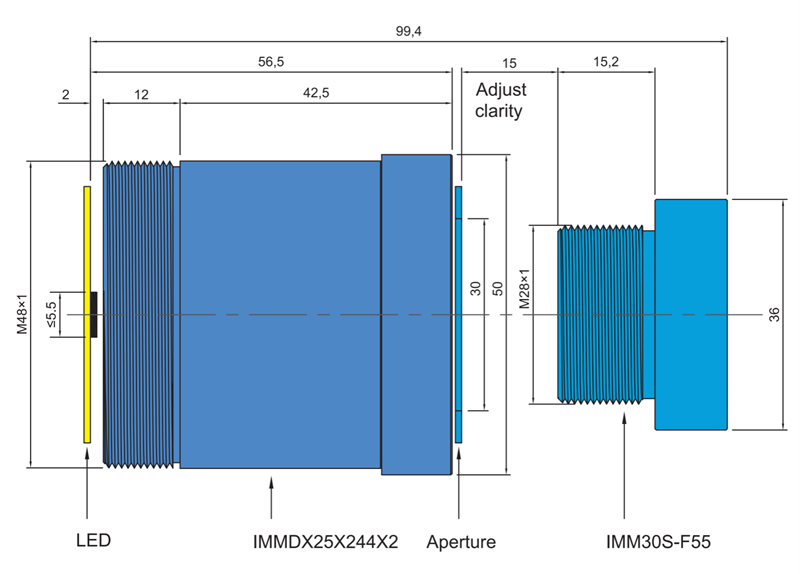

Light path diagram:


A space of about 15mm length is provided on the right side of the iris, in which the IMM30S-F55 lens can be moved appropriately to focus at different throw distances until perceiving a clear enough image.
