IMM60S-F42

Product Detail


IMM60S-F42 is an imaging projection lens with fixed focus and wide beam angle. It contains several aspherical lenses, coated with multi-layer anti-reflective films, and assembled in a matte black metal shell. The beam angle of lens is 42 degrees and has the characteristics of ultra-high resolution and no distortion.


The lens is used with LED light source, and a converging lens is provided to gather light. Light spot projected by IMM60S-F42 is clear and sharp, the light intensity distribution is highly uniform and light path is short.


Applied to: Large and medium-sized LED high definition gobo projector, profile spotlight.


Beam angle: 42 degrees

Iris: ≤ Φ60mm

LED: luminous surface ≤ Φ15mm,small luminous surface helps get higher imaging quality

Light path: ≤ 175mm

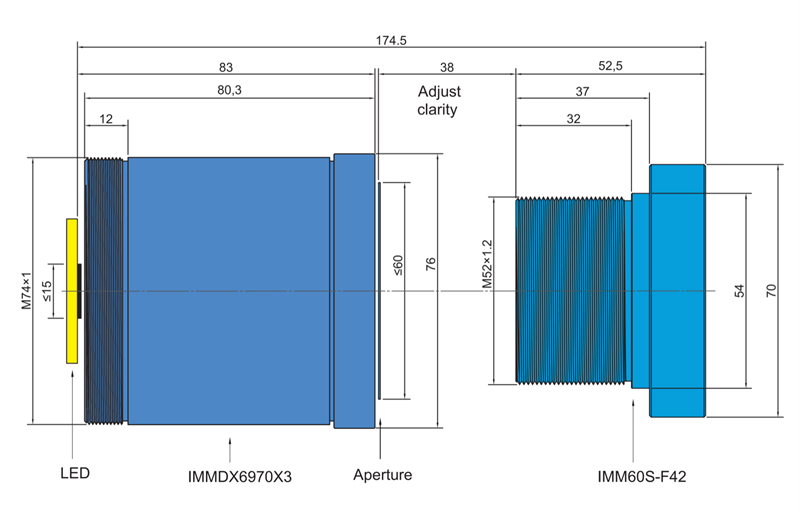

IMMDX6970X3搭配IMM60S-F42 光路图(英)_00.png

When the LED's luminous surfacce is within 15mm we can use IMMDX6970X3 as the converging lens to work with IMM60S-F42.
