Optical Matrix Module Range

LED Matrix Module

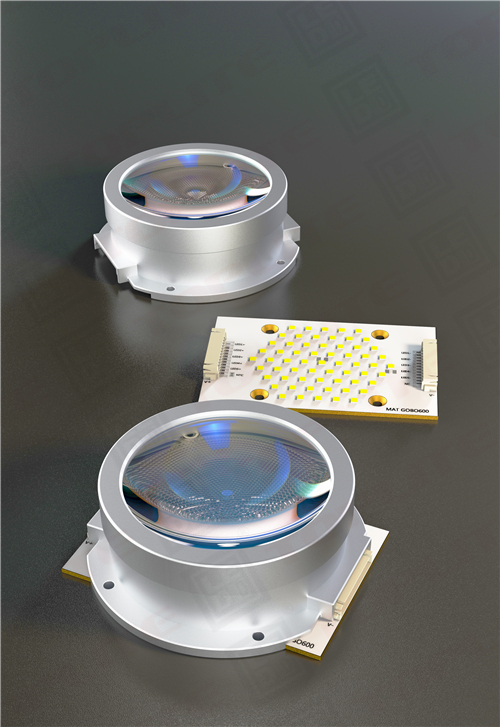

The MATGOBO600 is a converging lens module of LED matrix module, it utilizes a patented design with a multi-layer fly-eye lens matrix. It is known for its extremely high light density and brightness, making it suitable for high-intensity lighting and high-density spotlight applications in various contexts, including LED moving head lights, pattern lights, cutting lights, GOBO projection lights, follow spotlights, beam lights, and searchlights. During operation, MATGOBO600 combines with a 61 LED matrix light source to create a high-power LED matrix module. It provides dust protection, ensuring safer and more convenient maintenance and upgrades.

  • Condensing technology with invention patent

  • Multi layer compound lens condensing

  • High luminous density and high efficiency

  • LED compatible with 5050\3535\3030 external packaging, LED matrix, high-power

  • For LED beam light, search light, gobo projector, follow spotlight, LED moving head(BSW)

  • Light shape diagram:


Model selection and test data:

LED5050 packaging5050 packaging5050 packaging5050 packaging
LED Qty61616161
Power1300 W1300 W1300 W1300 W
F72~74 mm
72~74 mm72~74 mm72~74 mm
GΦ25 mmΦ25 mmΦ28 mmΦ28 mm
Luminous flux    90,000 lm
90,000 lm90,000 lm100,000 lm
Lens for testingIMMBEAM224230IMMBEAM224230IMMBEAM224230IMMBEAM224230
Beam angle of test
4.5°4.5° 5.5°5.5°
Illuminance @ 10 m85,000 lx85,000 lx 62,000 lx90,000 lx
External size94 × 92 × 39.8 mm94 × 92 × 36.8 mm94 × 92 × 44.5 mm94 × 92 × 44.5 mm

The test data in the table is for reference only. When different LED specifications are used, the test results will change accordingly.
