Optical Matrix Module Range

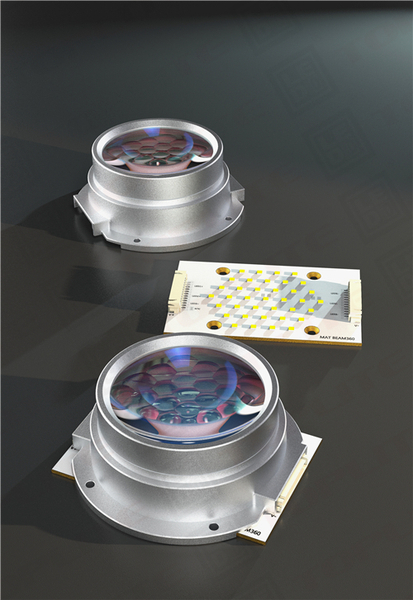

LED Matrix Module
- MATBEAM
Condensing technology with invention patent
Multi layer compound lens condensing
High luminous density and high efficiency
LED compatible with 5050\3535\3030 external packaging, LED matrix, high-power
For LED beam light, search light, gobo projector, follow spotlight, LED moving head(BSWP)
Model No. | MATBEAM360 |
LED qty | 37 |
Color | White |
Power | ≤ 740 W |
Working distance(F) | 72±2 mm |
Focal spot(G) | ≥ Φ6.5 mm |
Light shape beam angle | 46 degrees |
External size | L 110 × W 104 × H 44.7 mm |
Test data reference | 30,000 lm @ 520 W |
