IMM Wide-Angle Distortion-Free Projection Optical Lens Selection Guide

Do you dream of LED imaging projection lights with characteristics like high definition, high uniformity, wide-angle coverage, and distortion-free performance? As the old saying goes, you can't have your cake and eat it too. However, with the support of excellent design and precision manufacturing, these can be achieved simultaneously.

Indeed, the IMM wide-angle distortion-free imaging projection series optical lenses produced by Guangzhou Toplite can easily meet these requirements, delivering top-tier imaging light quality for your LED pattern projection and profile lights.

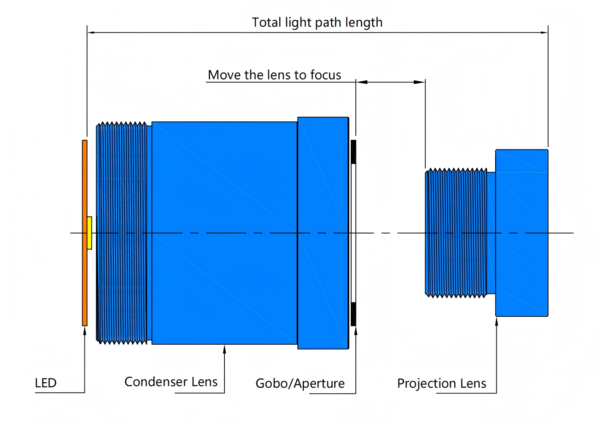

Optical Structure and Features

The IMM wide-angle distortion-free imaging projection series features a simple optical structure with a short optical path, requiring only two lenses to easily build the imaging projection lighting prototype you need.

· LED Light Source Compatibility: Supports various LED light sources, e.g. flip-chips with planar package and COB package, and vertical-chips. For better imaging quality, the LED with a small light-emitting surface is recommended.

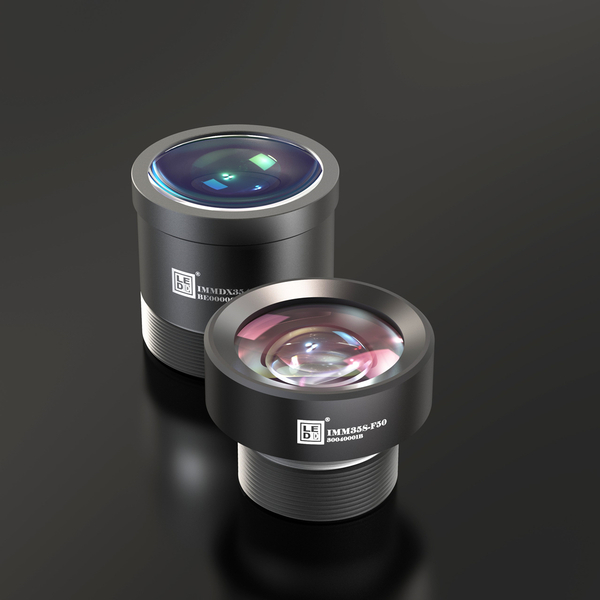

· Pre-Assembled Lens Modules: The condenser lens and projection lens are pre-assembled optical lens modules. They undergo extensive optical design and simulation, with lenses crafted through superior and reliable craftsmanship, and finally precisely assembled into an aluminum alloy housing.

· Adjustable Design: The lens housing is threaded for mounting on brackets or bases, allowing fine-tuning of the focusing distance and adjustment of spot clarity at different projection distances by rotation.

Performance Highlights

· High definition

· High uniformity

· Wide-angle coverage

· Distortion-free

· Sharp and straight cut-off lines
All verified by practical tests with excellent results!

Model Selection

Based on LED light source power and light-emitting surface size, this IMM product series offers 5 different models to meet the needs of lighting products ranging from high-power to low-power LED pattern projection and profile lights.

Application Scenarios

Suitable for professional lighting scenes such as:

· Museums

· Exhibition halls

· Commercial venues

· Logo and other patterns projection

· Outdoor cultural tourism projects

· Commercial photography and filming
