Product Series: PW

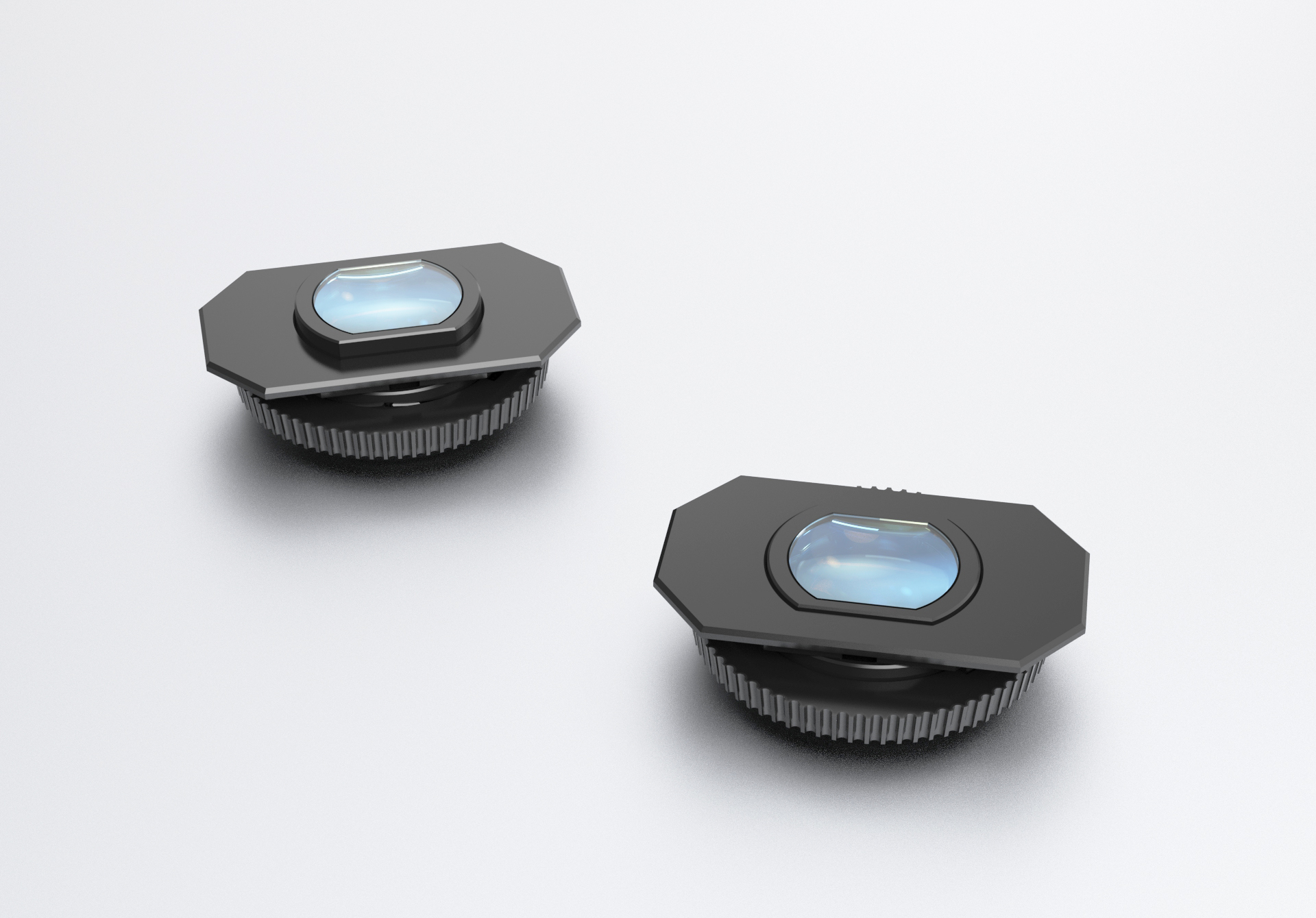

Product Name: VR optical lens assembly
The V/P/PW series of VR optical lens assemblies feature innovative optical design and can precisely fit mainstream OLED screens on the market. They have the characteristics of low distortion, high definition, compact size and light weight, and are equipped with an inclination compensation adjustment mechanism. Holding the invention patent for monolithic Pancake optical imaging, they also support rapid customization.
Model selection:
Lens model | PW1 | PW2 | PW3 |
Imaging solution | Monolithic Pancake optical imaging |
Focusing length | 2.3 mm | 1.8 mm | 3.3 mm |
Max. thickness | 16.8 mm | 13 mm | 19.3 mm |
Net weight | 16.6 g | 14.2 g | 23.6 g |
Screen size | 0.68 inch | 0.49 inch | 1.03 inch |
FOV | 80-degree | 64-degree | 96.4-degree |
Focusing support Human eye adaptability | -12D ~ +5D, continuously adjustable |
Distortion | 2% | 0.51% | ＜5% |
Download specifition files:
click here
