STONEHENGE

Product Detail

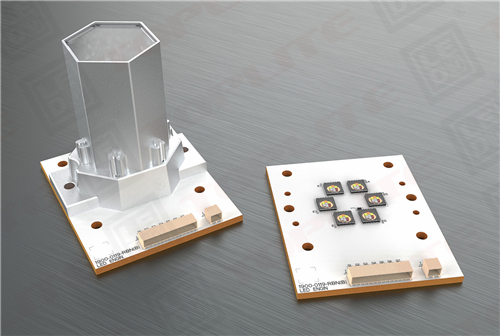

The STONEHENGE is designed for getting better color-mixing under high-power lighting applications. It is essentiall an optics matrix in form of numbers of light guide units. Each light guide unit handles the rays from one LED, so a STONEHENGE optics can handle rays from LED matrix which has the same number LEDs as light guide units inside the STONEHENGE. The LED matrix can easily be high power when there are enough chips. And a very easy way is provided to install both STONEHENGE optics and LED matrix to form a high-power LED module/engine. STONEHENGE based LED module/engine may have large light emitting surface but with much narrower beam angle than common surface light source like COB and create highly homogeneous light output. It is versatile and permits to use a lens or secondary optics to collimate light wihtout any color separation effects.

Application fields of STONEHENGE LED module: washlight, spotlight, profile spotlight, gobo projector, and other lighting appliances that require high-level color mixing.



Model No.Qty of LEDLED
STONEHENGE 400325050 pacakge, white
STONEHENGE 415323030/3535 package, white
STONEHENGE 600523030/3535/5050 pacakge, RGBW or white
STONEHENGE 1000883030/3535/5050 pacakge, RGBW or white
STONEHENGE 120RGBW35060 package RGBW
STONEHENGE 240RGBW65060 package RGBW
STONEHENGE 480RGBW125060 package RGBW
STONEHENGE 400RGBW325050 package RGBW
STONEHENGE OS30066070 package RGBW, 7070 package six colors
STONEHENGE OS600126070 package RGBW, 7070 package six colors
